Med/Vet Practice Microscope

SKU
G381SP-LED
The G380 combines state of the art design and features with the latest optical coating technologies for crisp, clear imaging on a versatile and ergonomic platform. All models in the G380 series feature... Read More
  • MONOCULAR HEAD
  • WF10X PAIRED EYEPIECES
  • 4X,10X,40XR,100XR DIN SEMI-PLAN ACHROMAT OBJECTIVES
  • BUILT-IN MECHANICAL STAGE WITH ABBE NA1.25 CONDENSER &IRIS
  • LED ILLUMINATION
  • The G380 combines state of the art design and features with the latest optical coating technologies for crisp, clear imaging on a versatile and ergonomic platform. All models in the G380 series feature "High-Eyepoint" 10x widefield eyepieces. This unique design allows users wearing glasses to comfortably view through the scope without removing their glasses as they would have to with traditional eyepieces.

    Available with your choice of Monocular, Dual-View,Binocular, or Trinocular heads, all of which rotate 360°.

    Select from standard Achromat, Semi-Plan, or flat-field Plan achromat objectives.Includes a focusable 1.25 NA Abbe condenser with Iris Diaphragm, oversized graduated coaxial coarse and fine focus controls, swing-out filter holder and a port to allow insertion of a Phase Annulus for Phase microscopy. A ballbearing movement mechanical stage is also standard with low position coaxial controls. Features an integrated dual voltage transformer (110V and 220V) and a detachable power cord so you can use this scope anywhere in the world.

    Head Monocular
    Eyepiece 10X WF Hi-EP
    Objectives Semi-Plan 4X/10X/40X/100X
    Condenser NA1.25
    Diaphragm Iris
    Stage Mechanical
    Illumination LED
    Bulb 3 Watt LED
    Focusing Coaxial
    Bodies
    G380-3001 MONOCULAR HEAD, 45° INCLINED FOR G380
    G380-3002 DUAL VIEWING HEAD WITHOUT EYEPIECE FOR G380 SERIES
    G380-3004 SEIDENTOPF BINOCULAR HEAD FOR G380 SERIES
    G380-3005 SEIDENTOPF TRINOCULAR HEAD FOR G380 SERIES
    Optics
    G380-1402 HIGH EYEPOINT 10X WIDEFIELD EYEPIECE, F.N. 18, EACH

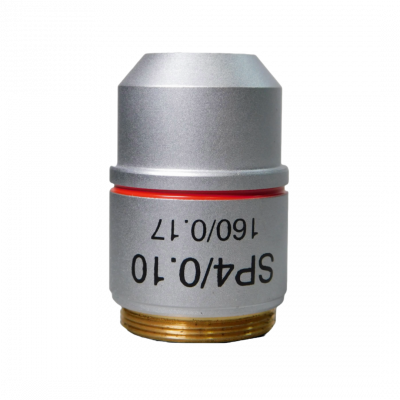

    G380-2101 4X DIN ACHROMAT OBJECTIVE, N.A. 0.10 FOR G380 SERIES

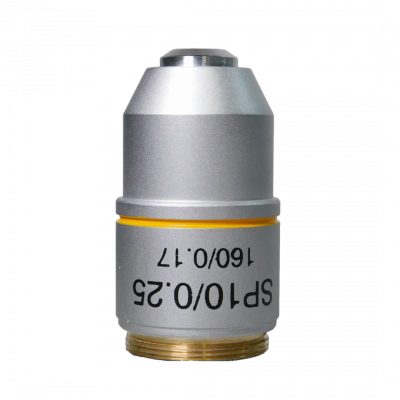

    G380-2102 10X DIN ACHROMAT OBJECTIVE, N.A. 0.25 FOR G380 SERIES

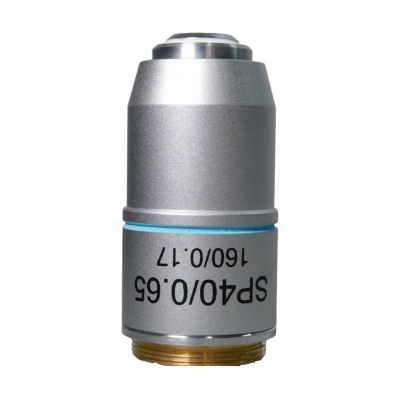

    G380-2103 40X DIN ACHROMAT OBJECTIVE, N.A. 0.65, RETRACTABLE FRONT LENS FOR G380 SERIES

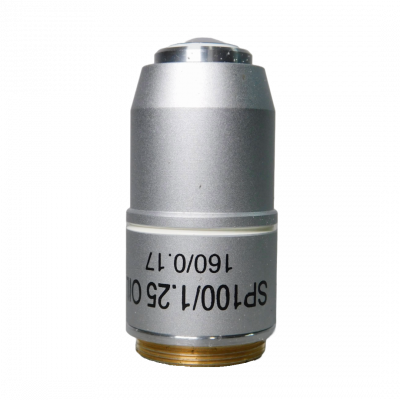

    G380-2104 100X DIN ACHROMAT OBJECTIVE, N.A. 1.25, OIL, RETRACTABLE FRONT LENS FOR G380 SERIES
    G380-2301 4X DIN PLAN OBJECTIVE, N.A. 0.10
    G380-2302 10X DIN PLAN OBJECTIVE, N.A. 0.25
    G380-2305 25X DIN PLAN OBJECTIVE N.A. 0.40
    G380-2303 40X DIN PLAN OBJECTIVE, N.A. 0.65, RETRACTABLE FRONT LENS
    G380-2304 100X DIN PLAN OBJECTIVE N.A. 1.25, RETRACTABLE FRONT LENS
    G380-2601 4X INFINITY ACHROMAT OBJECTIVE, NA 0.10
    G380-2602 10X INFINITY ACHROMAT OBJECTIVE, NA 0.25
    G380-2603 40X INFINITY ACHROMAT OBJECTIVE, NA 0.65
    G380-2604 100X OIL IMMERSION INFINITY ACHROMAT OBJECTIVE, NA 1.25
    G380-2631 4X INFINITY PLAN ACHROMAT OBJECTIVE, NA 0.10
    G380-2632 10X INFINITY PLAN ACHROMAT OBJECTIVE, NA 0.25
    G380-2633 40X INFINITY PLAN ACHROMAT OBJECTIVE, NA 0.65
    G380-2634 100X OIL IMMERSION INFINITY PLAN ACHROMAT OBJECTIVE, NA 1.25
    Miscellaneous Accessories

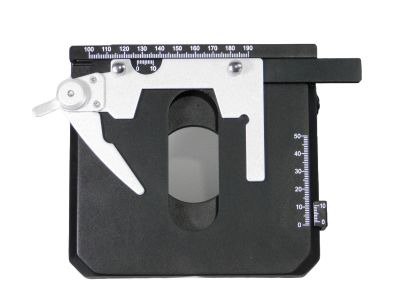

    G380-5111 GRADUATED MECHANICAL STAGE (COAXIAL LOW POSITION CONTROLS) FOR G380 SERIES
    G380-6001 ABBE CONDENSER, N.A. 1.25, W/ IRIS DIAPHRAGM, SWING-OUT FILTER HOLDER FOR G300 SERIES

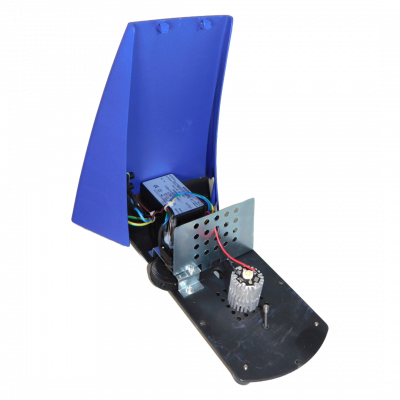

    G380-7001 LED ILLUMINATOR PACK, SNAP-IN, INCLUDED 3 AA BATTERIES, FOR G380 SERIES ONLY
    G380-7002 MIRROR ASSEMBLY, SNAP-IN FOR G380 SERIES ONLY
    G380-7010 FIELD DIAGRAM KOEHLER SET FOR G380, G390 SERIES MICROSCOPES
    G380-8010 PHOTO LENS AND PHOTO ADAPTER WITH UNIVERSAL THREAD FOR G380 SERIES (REQ. CAMERA AND T-MOUNT)
    G380-8011 VERTICAL VIEWING ADAPTER (TO BE INSTALLED ON TRINOCULAR HEAD. REQUIRES EYEPIECE)

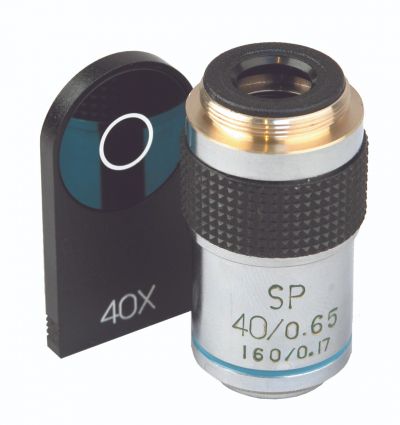

    G380-8031 PHASE KIT: INCLUDES 40XR SEMI-PLAN PHASE OBJECTIVE AND SLIDE-IN ANNULUS RING FOR G380 SERIES
    G380-8034 PHASE KIT: INCLUDES 10X SEMI-PLAN PHASE OBJECTIVE AND SLIDE-IN ANNULUS RING FOR G380 SERIES
    G380-8032 SLIDE-IN 40X PHASE ANNULUS RING FOR G380 SERIES
    G380-8907 HARD CARRYING CASE, PADDED WITH LOCK & KEY (2)
    G380-8001 DUST COVER FOR G380 SERIES
    G380-8906 DARKFIELD STOP FOR G380 SERIES
    G380-9008 BACKPACK™ FOR G380, G390 AND G490 SERIES MICROSCOPES, ACRYLIC ACCESORY ATTACHMENT
    Size 9.5 in x 7.5 in x 16 in (240 mm x 190 mm x 410 mm)
    Shipping Size 13.5 in x 10.5 in x 17.5 in (340 mm x 260 mm x 440 mm)
    Weight 14 lbs (6.4 kg)
    Shipping Weight 18 lbs (8.2 kg)
